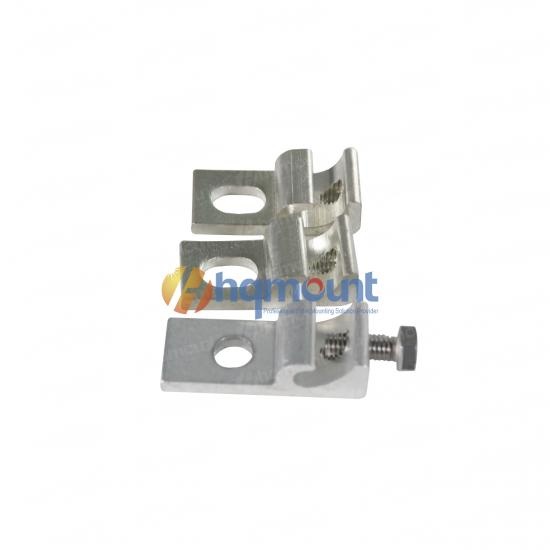

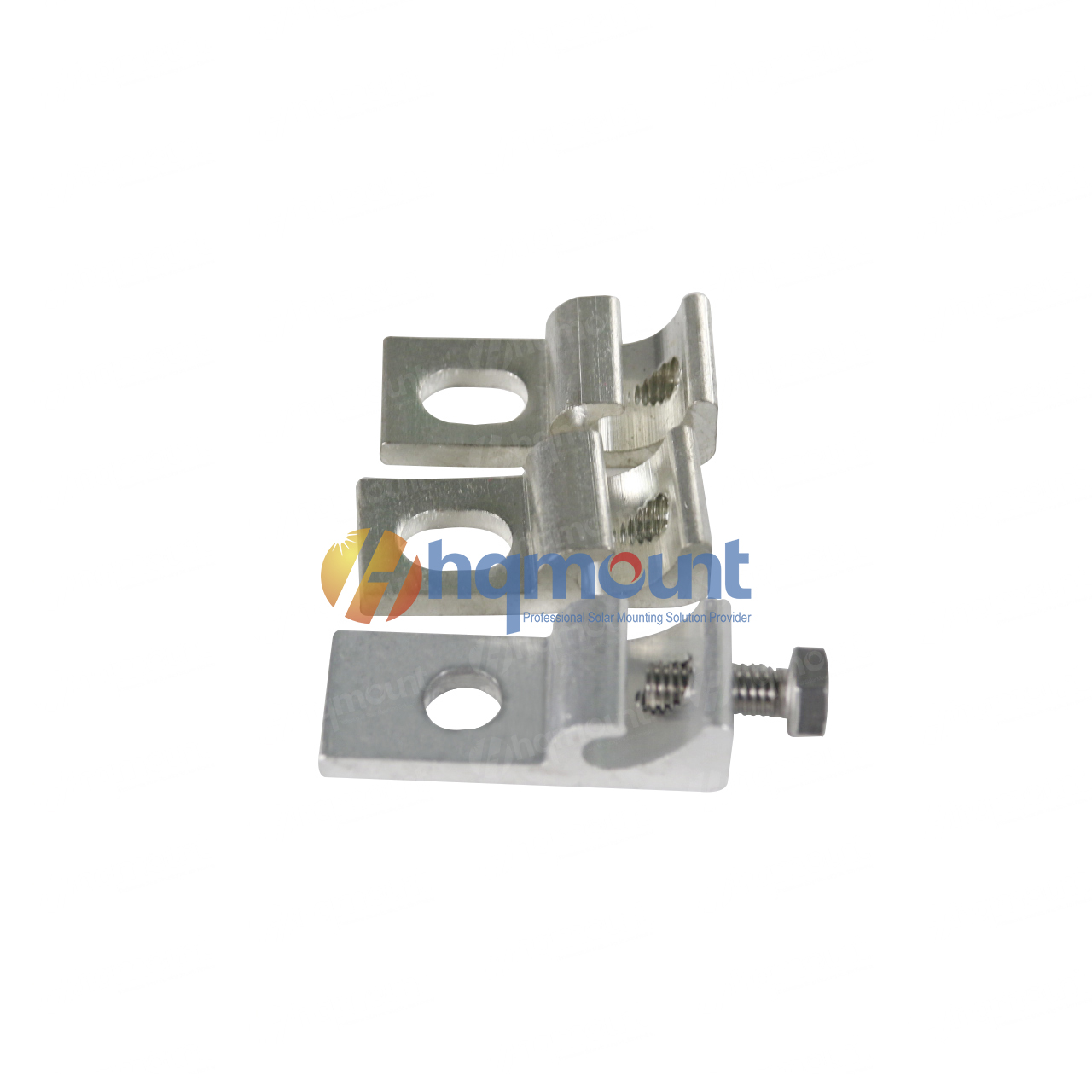

Original factory Stainless Steel Solar Panel Mounting Grounding Lug Made of corrosion-resistant aluminum and SUS304.
Available:
1.With or without conductive plate.
2.Assembled and unassembled.

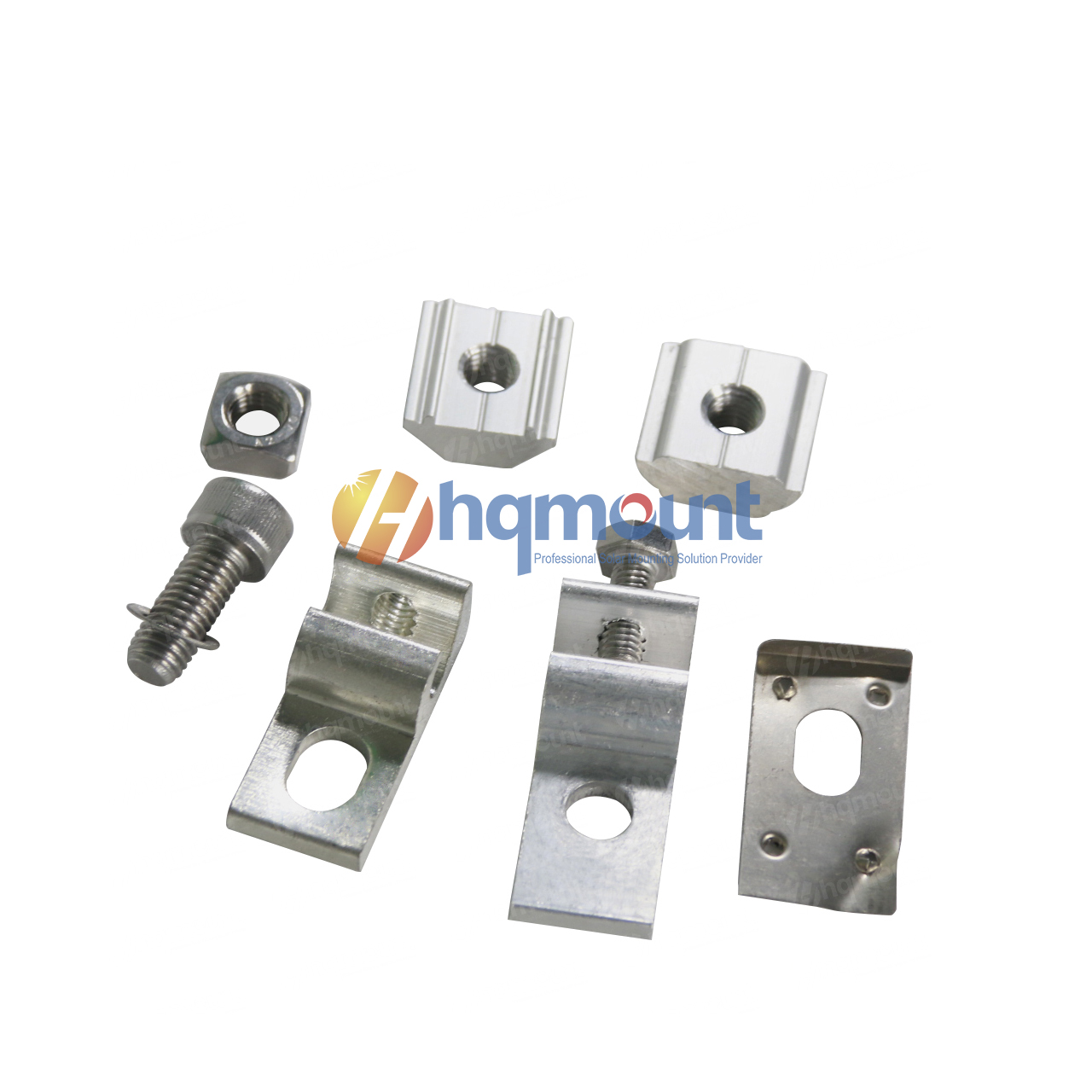

3.With or without installation hardware.
4.Meet standard of AS/NZS 1170.2 , JIS C 8955:2011
5.Custom designs available upon request.
solar mounting grounding lug
Material
Al 6005-T5 & SUS304
Size
Customized
Surface
Anodized, Black Electrophoresis.
Certification
ISO, SGS, Aluminum testing report.
Usage
Solar ground mounting system, solar carpot, solar rooftop mounting system

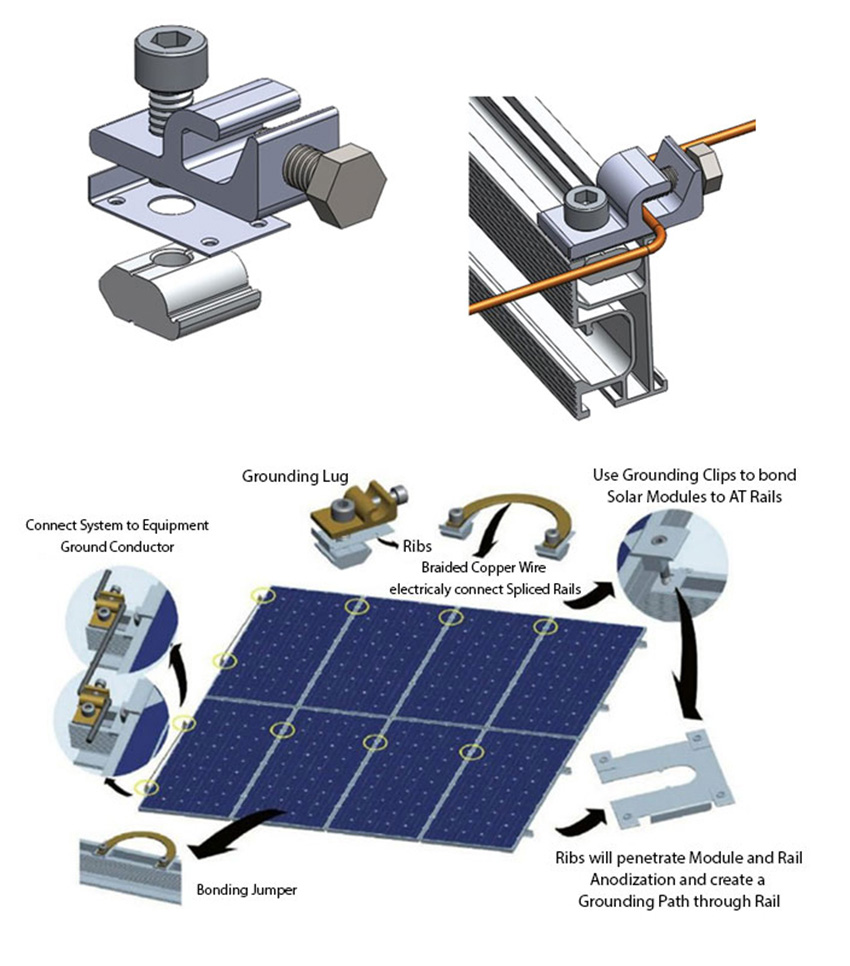

Grounding Lug ensures a quick and easy installation. Multiple equipment ground conductor allowance.

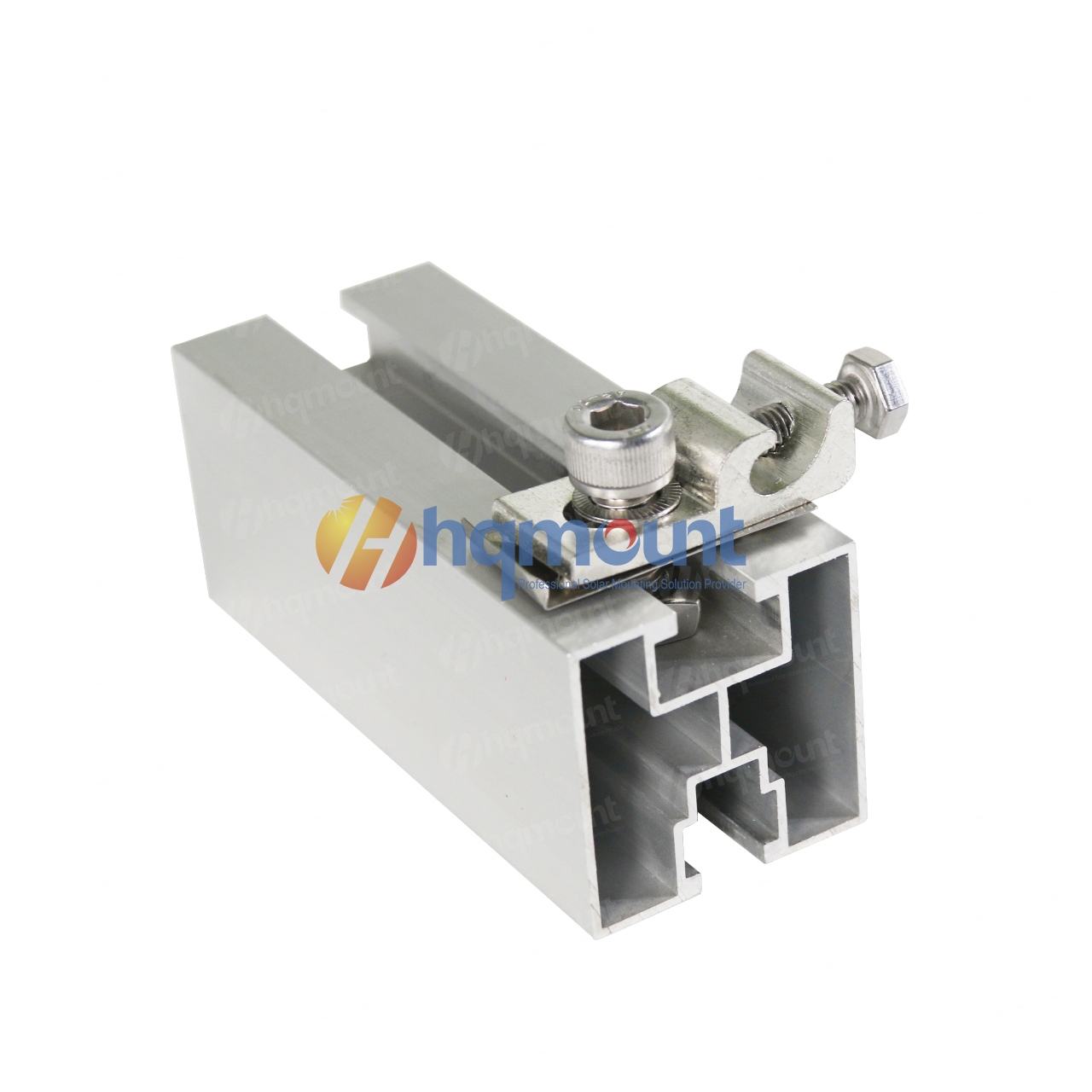

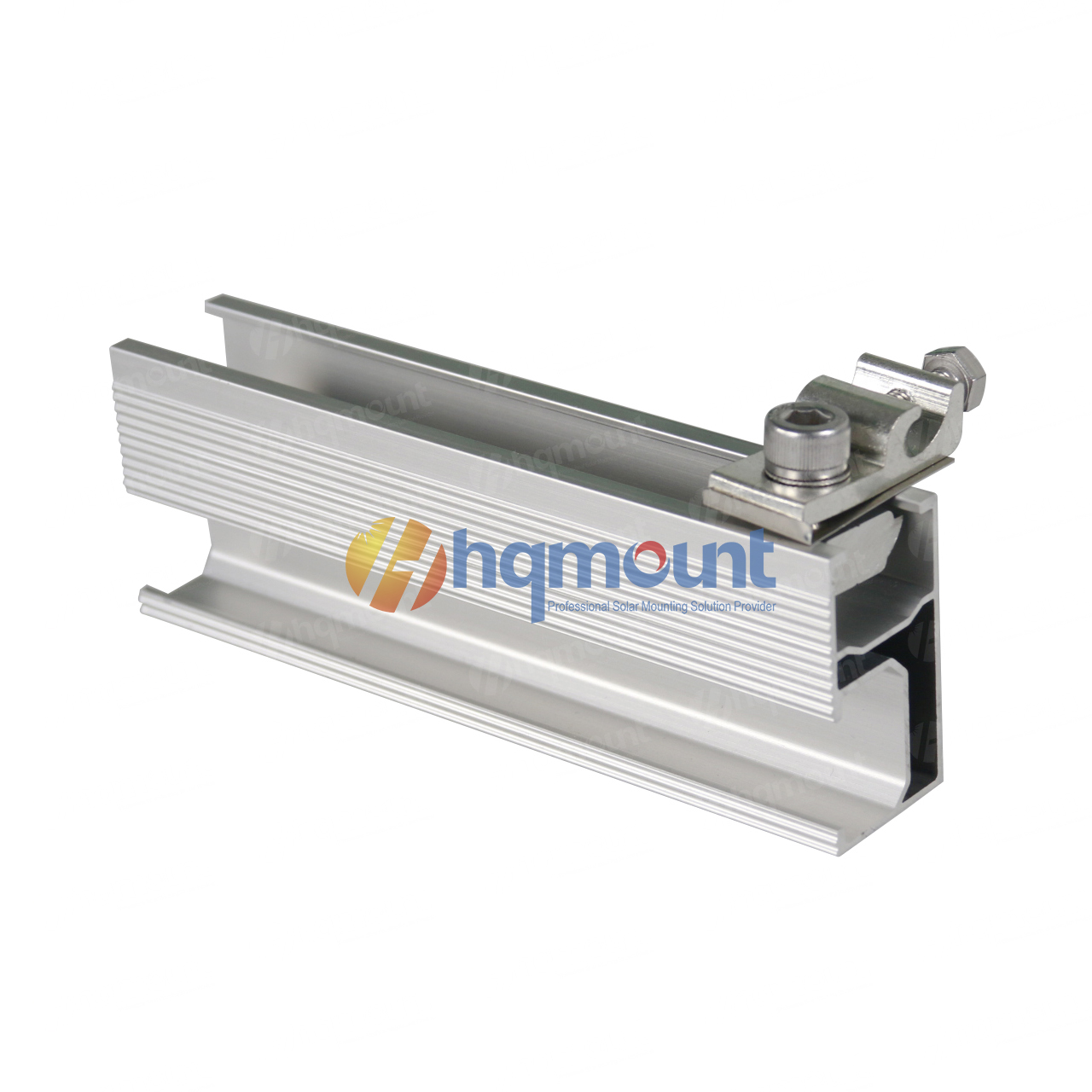

The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded.
copper wire (14AWG to 6 AWG), or two copper wires (12 AWG to 10 AWG).It is installed using stainless steel .
mounting hardware:When the hardware is tightened, the conductive plate specialized teeth embed into anodized aluminum or any electrically conductive metal to establish a gas tight electrical connection.
