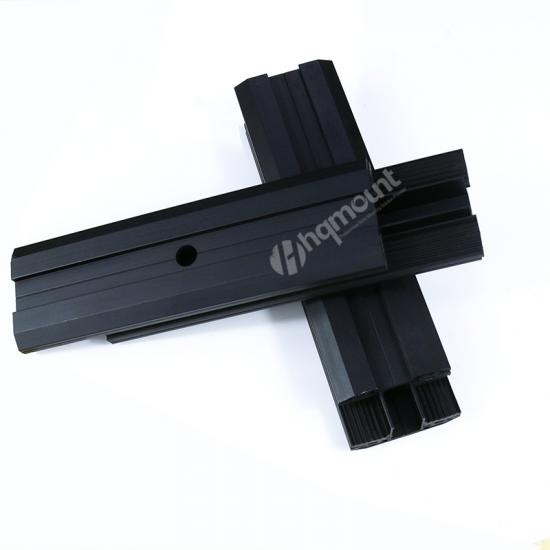

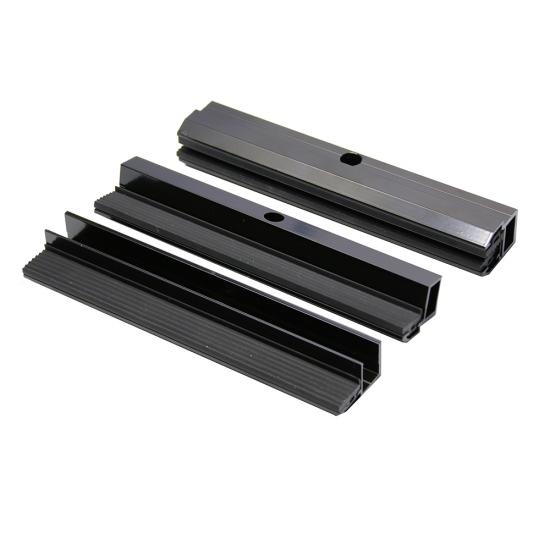

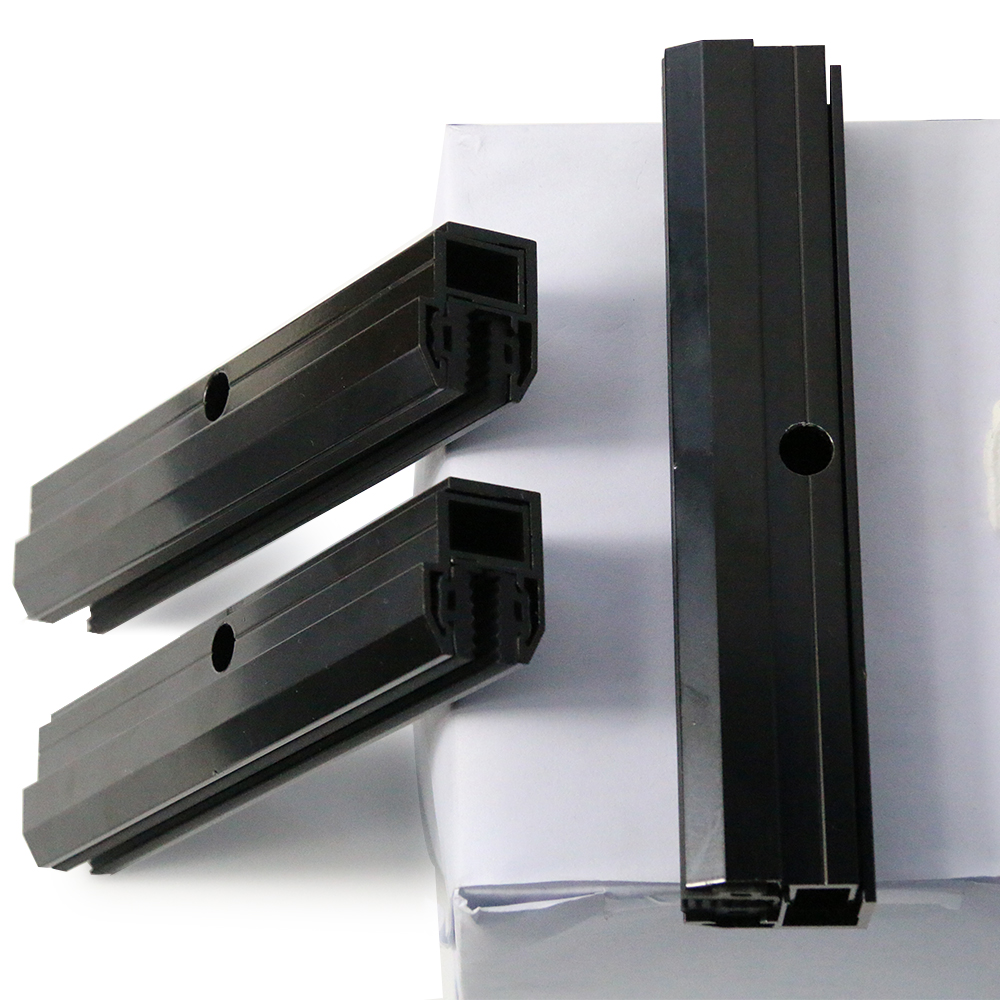

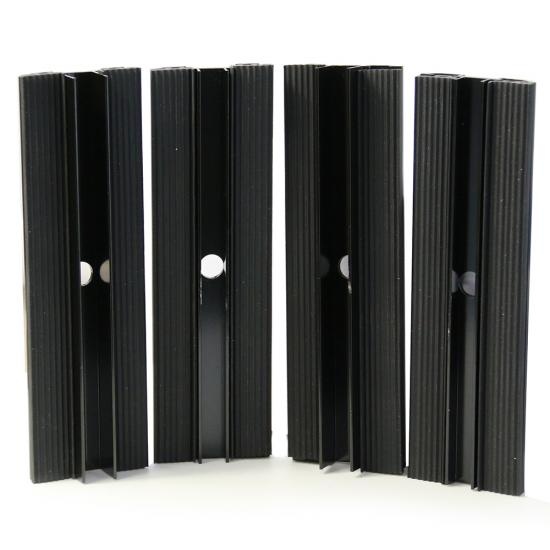

HQ Mount Frameless Aluminum black solar thin film mid clamps
Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules.Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.

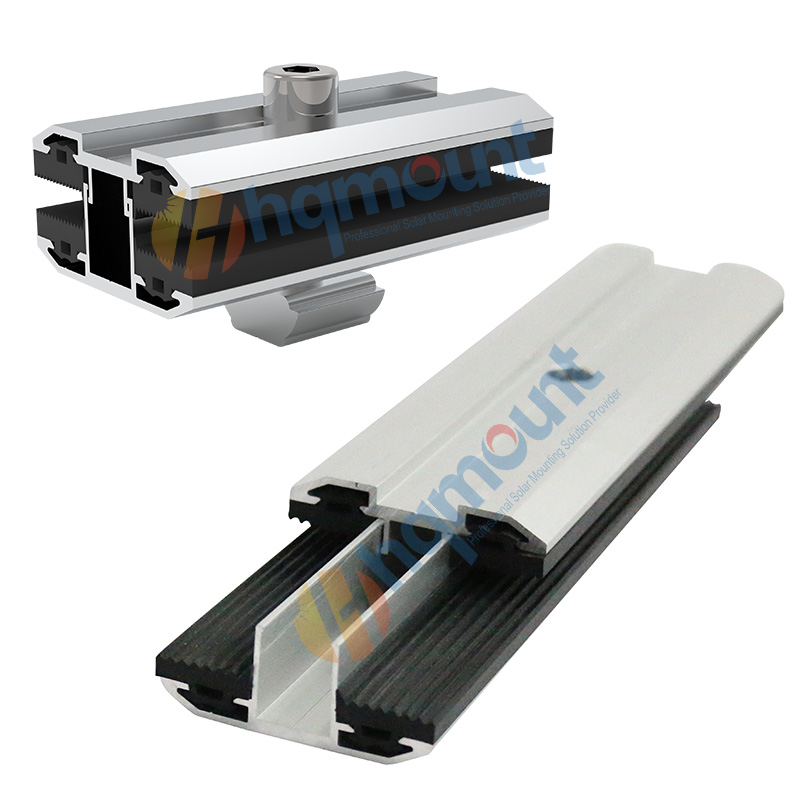

Features of black thin film mid clamps & end clamps:
1.Lower cost,incomparable value
2.Fast installation, Flexible attachment
3.More perfect services and compete technical support.
Brief introduce:
Installation site:Flat roof system&ground mount system.
Material:Al 6005-T5
Surface Finish:Natural Anodizing, black anodizing or other color.
Accessories:Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Applicable Module:6-9mm frameless thin film solar module
Length:80mm, 120mm, 150mm,200mm,ect. can be customized.
Wind Speed:Up to 60m/s
Snow Load:Up to 1.4KN/m2
Warranty:12 years warranty,25 years life time.
Standard:AS/NZS 1170.2, JIS C 8955:2011
Packing:
