Solar Module Mid/ End Clamp With Drop T bolt For Fast Installation 2019-06-04


HQ MOUNT delivers solar rooftop racking and solar ground mounting solution with best quality, lower cost and better service, provide support with availability and flexibility and guide you during the whole design process for solar mounting system. Using advanced solar mounting technology, the products can satisfy the requirement of the customers not only with a variety of solar mounting structures, but also the high quality products which are durable, long lasting, efficient and include more than 10 years of material warranty.

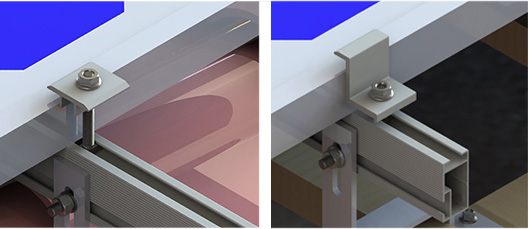

Solar mid and end clamps are pre-assembled. When installation, firstly fix the solar panel to the solar aluminum rail with solar inter clamp and end clamp, then just slide the panel against the installed panel, then fasten the inter and end clamp.

Solar Inter Clamp / End Clamp Installation Details:

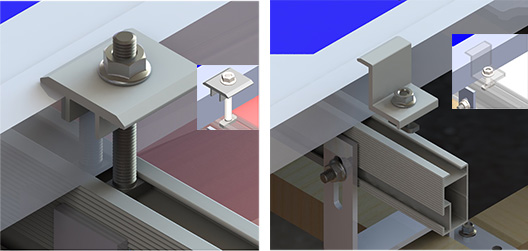

Put the solar T bolt into the groove of rail.


Slide the solar T bolt to the position close to the solar panel. Engage the bolt head with groove.

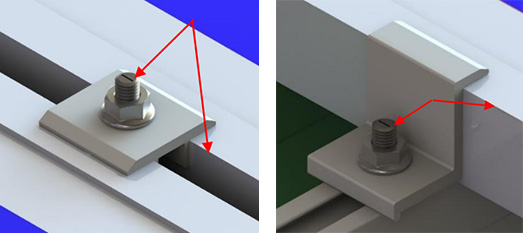

Fasten the solar inter/end clamp, make sure the mark at the bottom of the

steel T hammer head bolt is parallel to the edge to solar panel.
